Group 2 (4..20 ñì3)

GP4…20N+4…14N - 4(3)

Specifications, shaft and flange options for single and multiple pumps are identical.
Pump speed is determined by the stage with the minimum shaft speed.
On maximum pressure of each stage the user should contact the manufacturer for assistance.

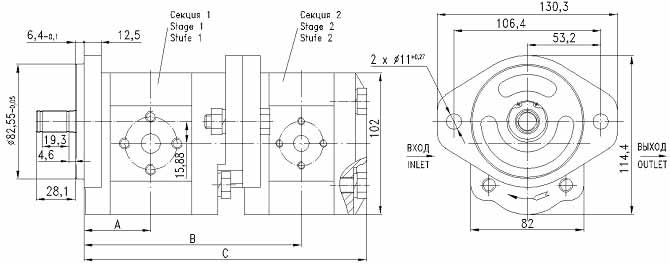

Dimension è connection sizes

Group 2 (4..20 ñì3)


   Stage
Displacement Code 4 6 8 10
A Â Ñ A Â Ñ A Â Ñ A Â Ñ
            Stage
4 42.5 145.5 193.5 41 142.5 190.5 42.5 145.5 193.5 47 154.5 154.5
6       141 188 144 191 153 200
8             145.5 193.5 154.5 202.5
10                   159 212
11
12
14
Terms of manufacture O O O O
  O O O
    O O
      O




Stage
Displacement Code 11 12 14 15
A Â Ñ A Â Ñ A Â Ñ A Â Ñ
 Stage
4 48 156.5 204.5 48.7 157.5 205.5 50.2 160.5 208.5 51 161.5 209.5
6 155 202 156 203 159 206 160 207
8 156.5 204.5 157.5 205.5 160.5 208.5 161.5 209.5
10 161 214 162 215 165 218 166 219
11 162 215.5 163 216.5 166 219.5 167 220.5
12       163.7 218 166.7 221 167.7 222
14             168.2 223.5
Terms of manufacture O O O O
O O O O
O        O O O
O O O O
O O O O
  O O O
    O

Stage
Displacement Code 16 19 20
A Â Ñ A Â Ñ A Â Ñ
              Stage
4 51.8 167.5 215.5 54 171.5 219.5 56.5 173.5 221.5
6 166 213 170 217 172 219
8 167.5 215.5 171.5 219.5
10 172 225
11 173 226.5
12
14
Terms of manufacture
 O O O
O O O
O O
O
O
