Group 2

The pump is employed for porting fluid to the steering system of tractors, agricultural and other machinery.
It consists of a gear pump with displacement 6,3 cm³, relief valve and reservoir with a built-in filter, charging port and air bleeder.

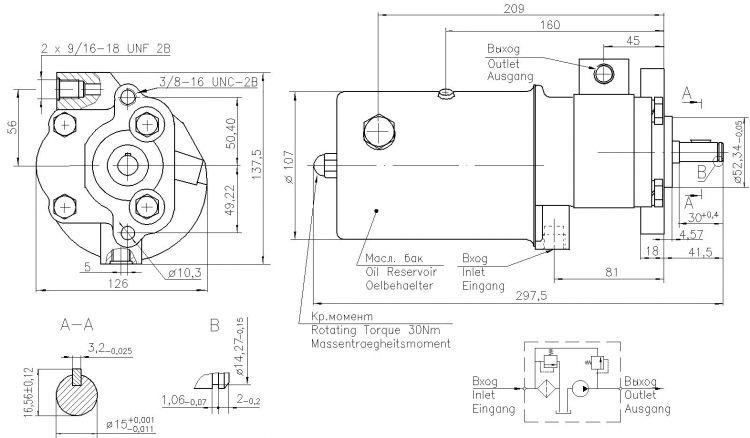

Dimension и connection sizes

Displacement Code	6
Displacement, cm³	6,3
Speed, min^-1
rated	1500
maximum	4000
minimum	500
Rated Flow l/min	9.0
Relief Pressure MPa (bar)
rated	10…11 (100…110)
maximum	21 (210)
Rated kW	1,9
Terms of manufacture	M
